Designed in Belgium · Produced in Europe
Rare-earth-free motors for unmanned systems.
DRV Solutions designs rare-earth-free motors for unmanned vehicles and engineers electric drivelines for any industry. Both build on the same foundations: deep electromagnetic and system-level know-how.
01 · PRODUCTS
Rare-earth-free motors
Ferrite-magnet outrunners for unmanned air, ground and sea systems, built on a flexible European supply chain.
Explore the motors →
02 · SERVICES
Electric driveline engineering
Simulation, design and validation support for electric drivelines in automotive, industrial, aerospace and heavy-duty applications.
Explore our services →
0%
rare-earth magnet content in our motors
90 g – 1.1 kg
motor mass. Three motor families, from FPV to heavy-lift
10+ yrs
e-driveline experience per team member
EUDIS
Business Accelerator cohort 2

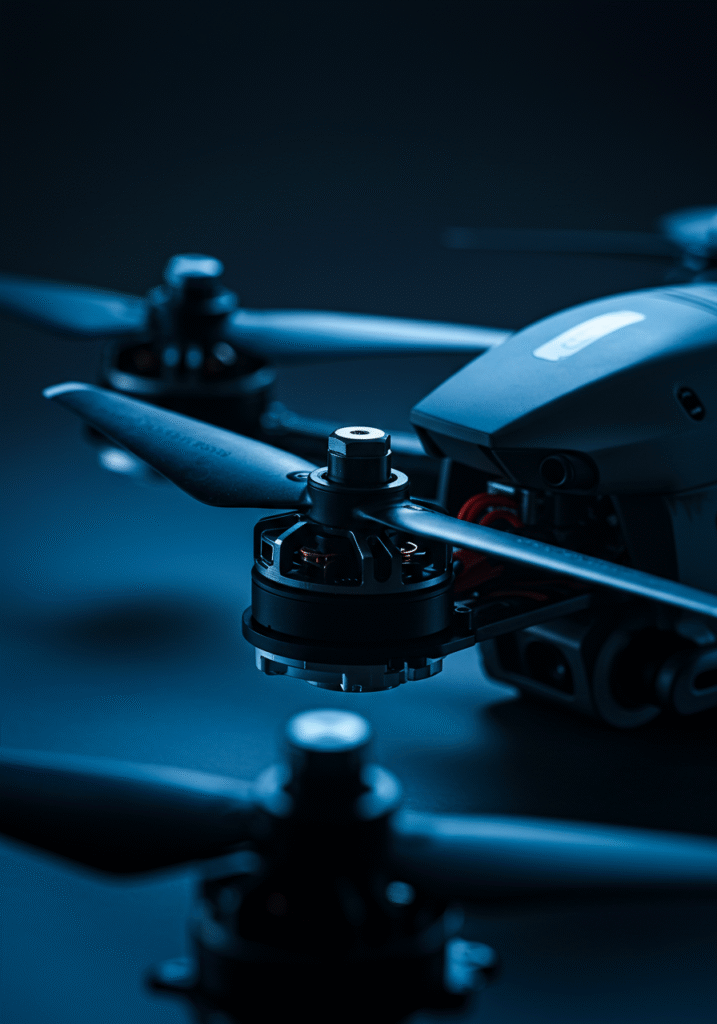

01 — UXV PROPULSION MOTORS
Three motor families. Zero rare-earth magnets.
Most UxV motors depend on rare-earth magnets, a narrow and supply-constrained source. Ours use ferrite magnets made from widely available materials, so they can be sourced and produced flexibly within Europe, without giving up the performance their class needs.
FPV MULTIROTOR · 4S–6S
Poseidon Ø 28 mm stator
Agile, high-KV propulsion for freestyle and training FPV multirotors.
Variants: 2810 KV1060
Peak power (3 s)
0.58 kW
Peak torque
0.26 Nm
Max efficiency
89.6 %
Mass
90 g
Flight training · freestyle and acro · aerial demonstration
HIGH-SPEED UAV · 6S–14S
Orion Ø 48 mm stator
Compact, high power-to-weight propulsion that keeps full rated performance up to high speed.
Variants: 4827 KV530
Peak power (9 s)
6.5 kW
Peak torque
2.7 Nm
Max efficiency
92.8 %
Mass
540 g
Interception · rapid response · agile reconnaissance
HEAVY-LIFT · VTOL · 10S–12S
Minos Ø 100 mm stator
High-power outrunner for heavy-lift multirotor and VTOL platforms.
Variants: 10025 KV150
Peak power (13 s)
6.6 kW
Peak torque
10.0 Nm
Max efficiency
92.8 %
Mass
1201 g
Heavy-lift · mapping · agriculture
Preliminary figures, pending full validation. Peak ratings are short duration, continuous ratings and test conditions in data sheet.
FPV MULTIROTOR · 4S–6S · NeFeB
Poseidon – classic Ø 28 mm stator
Need something today? Check our classical version of the Poseidon. Not rare-earth free, but available today!
Variants: 2810 KV1140
Peak power (7 s)
0.55 kW
Peak torque (7s)
0.27 Nm
Max efficiency
87.8 %
Mass
66 g
Flight training · freestyle and acro · aerial demonstration
Sovereign by design
01
No rare earths
Ferrite permanent magnets remove the dependency on supply-constrained rare-earth materials.
02
Flexible supply chain
Materials and components with multiple European sources, so production can switch suppliers instead of waiting on one.
03
Belgian design, European production
Engineered in Flanders and built for automated, scalable production in Europe.
DATASHEETS
Get the full specifications
Leave your details and we’ll email you a personal download link. Each datasheet includes:
- Torque, power and current maps at three battery voltages
- Peak and continuous ratings
- Electrical and mechanical specifications
- Recommended propeller, battery and ESC pairing
02 — ENGINEERING SERVICES
Electric driveline engineering, from field physics to platform impact.
Our team has developed automotive e-drivelines together for years, from university to Tier-1. We bring that to any market that runs on electric drivelines: automotive, industrial, aerospace and heavy vehicles. The application changes; the driveline physics doesn’t.
A
Performance & efficiency simulation
From electromagnetic FEA to performance and efficiency maps and complete duty cycle evaluations.
B
Design exploration
Clean-sheet concepts and trade-off studies, judged on their effect on the whole system and application.
C
Problem solving
Root-cause analysis when models and measurements disagree: performance, losses, thermals, NVH.
D
System integration
Getting motor, inverter, battery and cooling to work together in the application.
E
Validation & testing support
Test planning, characterisation and correlation between simulation and measurement.
THE FOUNDATION
Taurus simulation toolkit
Every study runs on Taurus, our in-house toolkit built on years of experience and validated by targeted tests. At about 75 µs per operating point, close to transient-FEA accuracy, full efficiency maps and complete drive cycles take seconds instead of days.
Available as plug-ins for your own toolchain, or as a service.
01 · MAGNETIC
Electromagnetic finite-element simulation, without build factors
02 · PERFORMANCE
Scalable efficiency and performance maps, including PWM-induced losses
03 · DRIVELINE
Duty cycles, thermal behaviour and application-level impact
Selected use-cases
AUTOMOTIVE · LOSS MODELLING
Closing a 30% gap between simulated and measured cycle losses
A customer’s CAE model underestimated drive-cycle losses by more than 30%. We traced about three quarters of the gap to PWM-induced copper, iron and magnet losses, and gave them a concrete optimisation path.
- >30% gap explained
- ~75% from PWM losses
Read the case →
UAV · DESIGN OPTIMISATION
Improve UAV resilience & flight time
A UAV motor redesigned to reduce its dependence on scarce critical materials, then evaluated at system level so the gain shows up where it counts: in flight time.
- 12% NdFeB reduction
- 4% mass reduction
- 7% flight time increase
Read the case →
WHY DRV
Europe needs propulsion it controls. We’re building it.
The gap
European UxV programmes need motors in volume, yet their propulsion depends on materials and production shaped by one country’s economic policy.
Our answer
Rare-earth-free motors, a European supply chain and production built for automation, designed with simulation tools proven in automotive programmes.
The team
Engineers who have worked together for years, with a proven track record at leading OEMs and Tier-1 suppliers.
MILESTONES
- Selected for EUDIS Business Accelerator Cohort #2: 20 teams from 450+ applicants
- Three motor families at functional-prototype stage, with first pilot cases running
- [ Coming soon – stay tuned ]
NEWS
Latest from DRV
Founding team
Five engineers, each with more than ten years in electric drivelines, who have worked together since university.
Thomas Vyncke
Managing Director
Extensive experience in electrical driveline systems.
Joachim Druant
Technical Specialist Electrical Drives
Inventive solutions to complex electrical-driveline challenges.
Simon Cherlet
System Simulation & Control Engineer
Advanced control solutions and system optimisation.
Dolf Vandamme
Technical Specialist Prototypes & Testing
Validation testing, prototypes and demonstration units.
Laurens Van Eykeren
Solution Architect
System architecture and strategic guidance for digital solutions.
CONTACT
Let’s talk electric propulsion.
Whether you’re integrating a motor, stuck on a driveline problem or looking at an investment, tell us briefly what you need and we’ll get back to you within two working days.
